How to configure ASA to open port 3389 for TS

You need these two lines:

access-list outside_access_out extended permit tcp any host x.x.x.198 eq 3389

static (inside,outside) tcp interface 3389 10.0.3.2 3389 netmask 255.255.255.255

If you use ASDM, Figure 1 id for the Rule and Figure 2 if for the NAT.

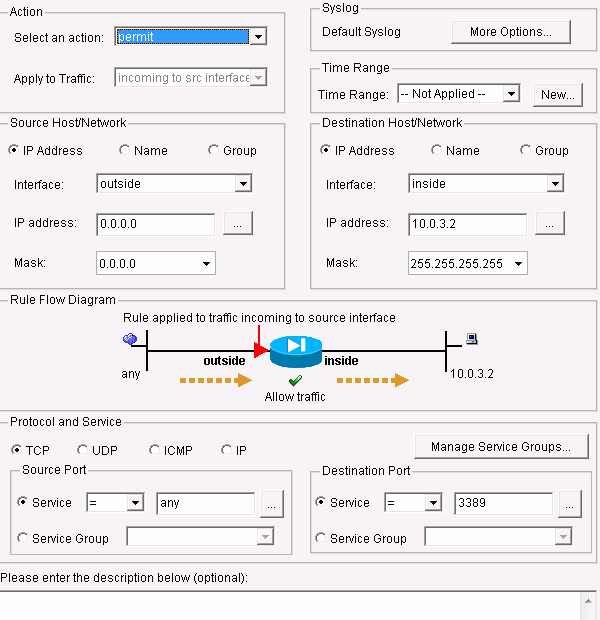

Figure 1.

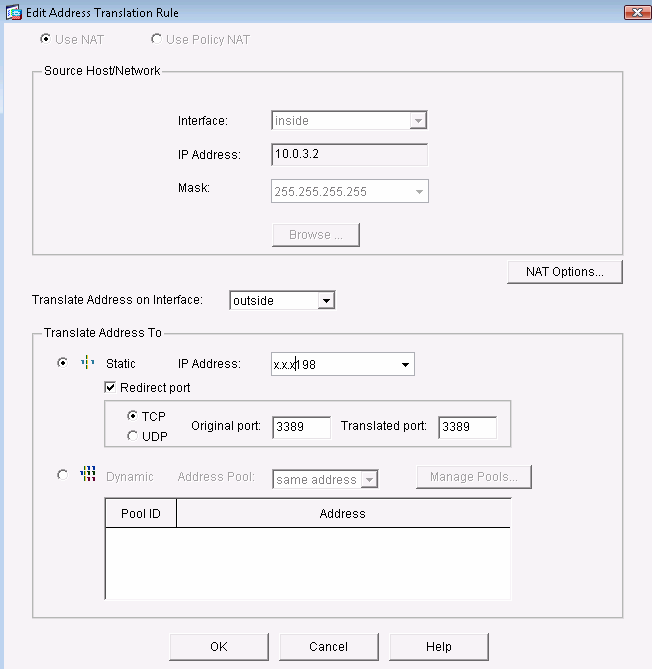

Figure 2.
